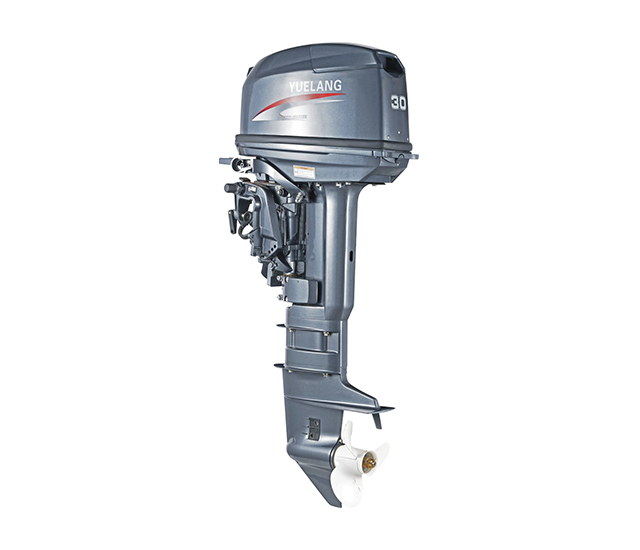

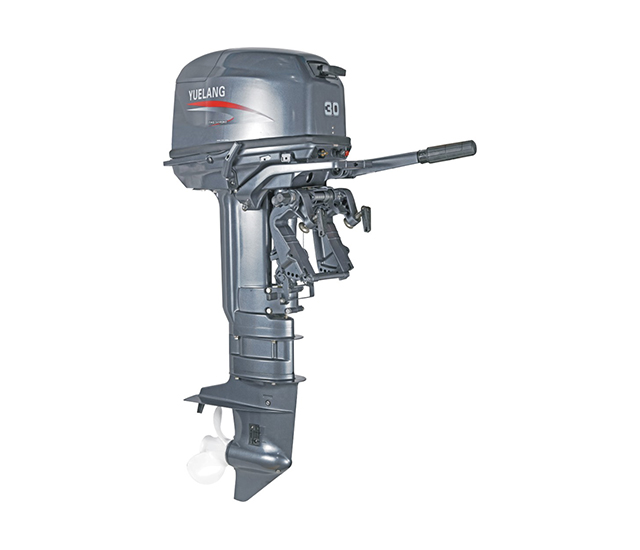

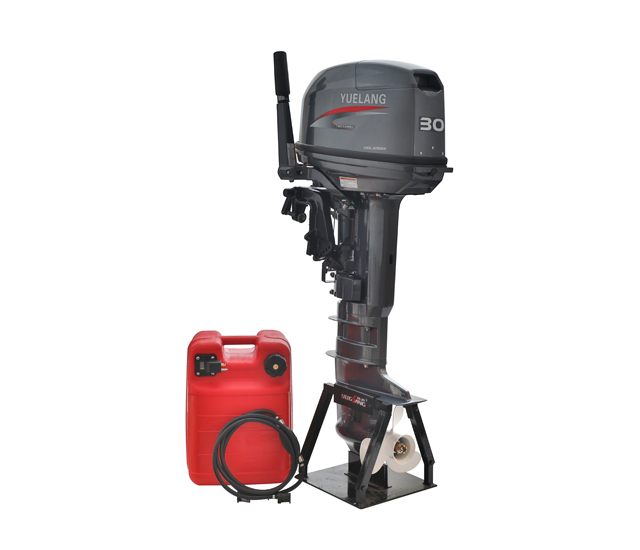

30HP water-cooled 2T

products

Model	30HP
Demension	Overall Length:843mm(33.1in) Overall Width:399mm(15.7in) Overall Height S:1146mm(45.1in) Overall Height L:1273mm(50.1in)
Weight	S:53Kg(116.8lbs) L:54.5Kg(120.1lbs)
Full Throttle Operating Range	4500-5500r/m
Maximum Output	22.1kw/30hp
Ldling Speed	1100±50r/m
Displacement	496cc
Bore x Stroke	72x61mm(2.83x2.4in)
Lgnition System	CDI
Spark Plug	NGK BR7HS-10
Spark Plug Gap	0.9-1.0mm
Control System	Tiller Handle
Starting System	Manual
Starting Carburation System	Choke Valve
Gear Position	Forward-Neutral-Reverse
Gear Ratio	2.08(27:13)
Trim And Tilt System	Manual Tilt
Recommended Fuel	Unlead Gasoline
Recommended Engine Oil	2-Stroke Outboard Motor Oil
Blended Fuel Oil Ratio	50:1
Gear Oil	0.320L
Fuel Tank Capacity	24L
Torque	35N.m/2500rpm
Propeller	9(7/8)x12-F
Fuel Consumption	14L/h
Packing Size	134.5x72x45cm
